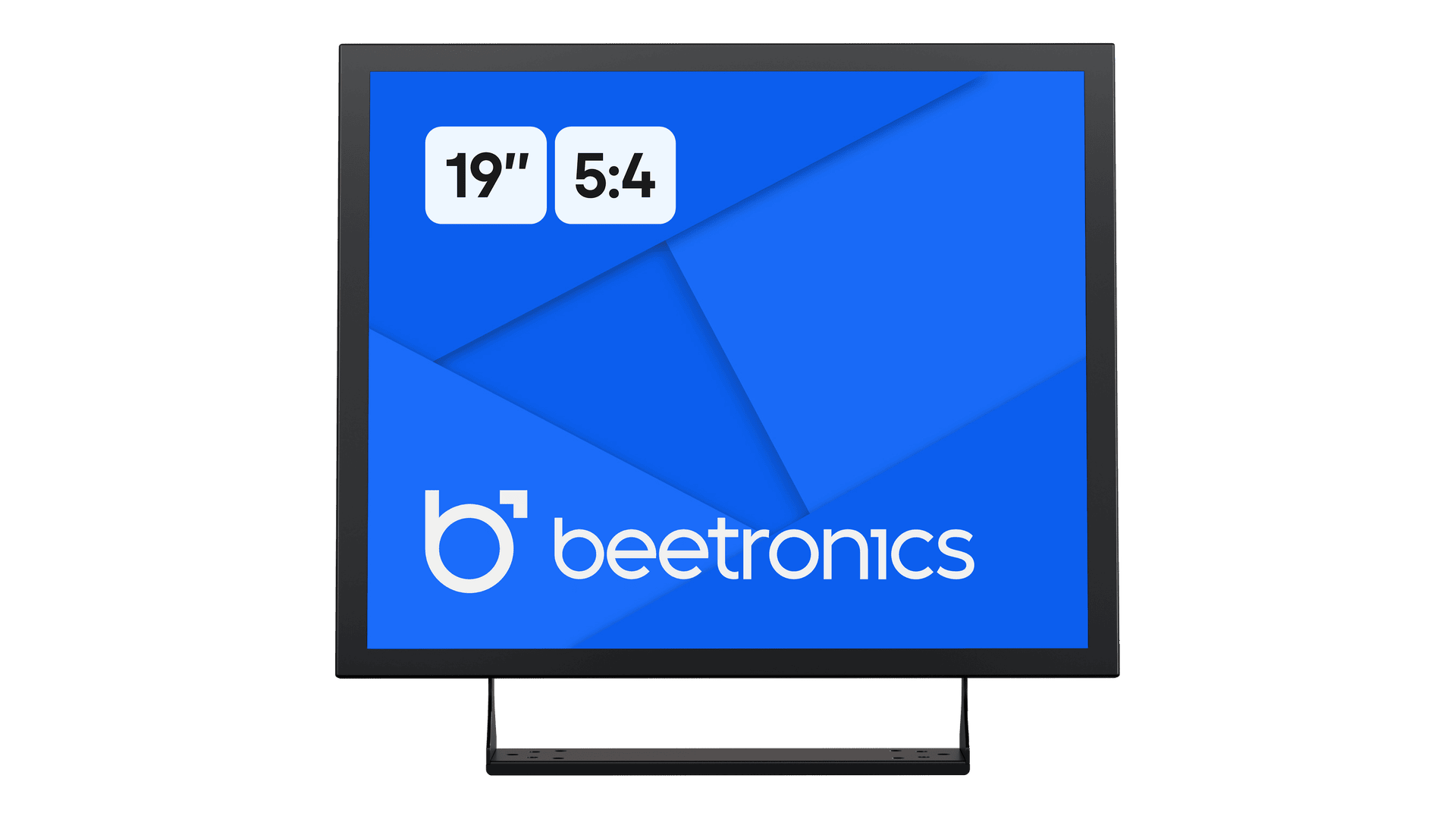

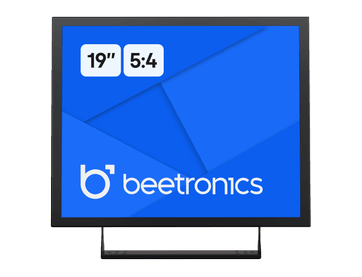

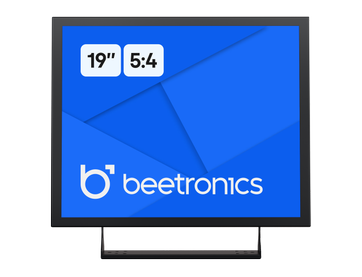

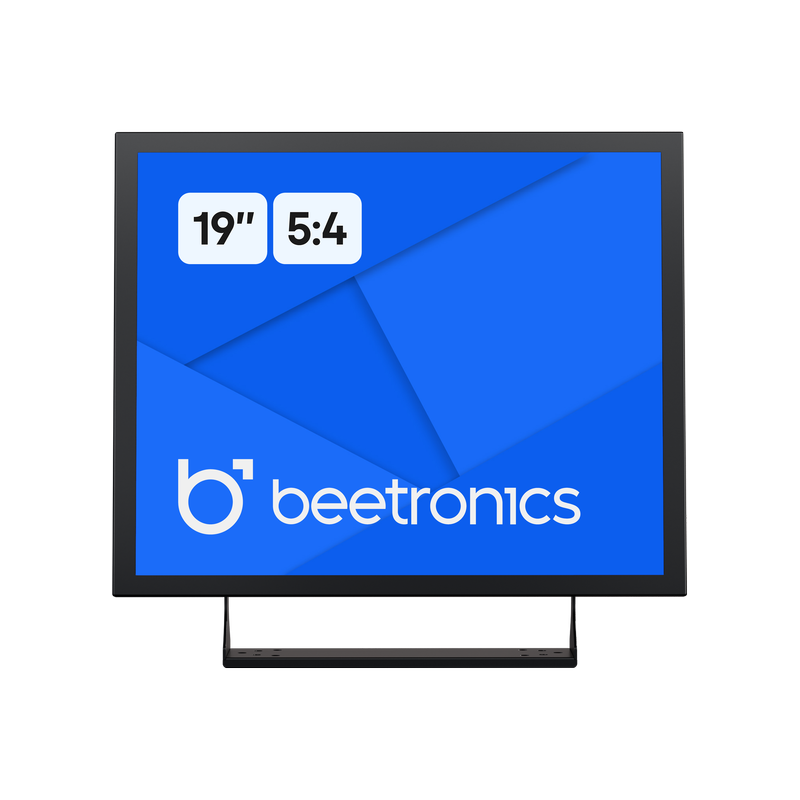

19 Inch Monitor Metal (5:4)
Model: 19VG7M
100+ units in stock
19 Inch Monitor Metal (5:4)
19 Inch Monitor Metal (5:4)
19 Inch Monitor Metal (5:4)
19 Inch Monitor Metal (5:4)
19 Inch Monitor Metal (5:4)
19 Inch Monitor Metal (5:4)
19 Inch Monitor Metal (5:4)
19 Inch Monitor Metal (5:4)
19 Inch Monitor Metal (5:4)
19 Inch Monitor Metal (5:4)

19 Inch Monitor Metal (5:4)

Model: 19VG7M
100+ units in stock
  1. 5:4 aspect ratio
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop

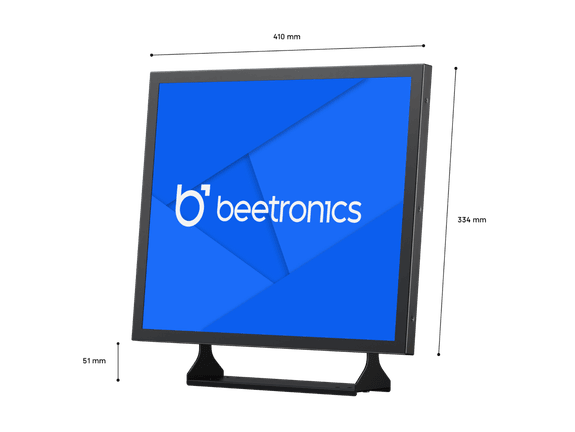

  4. External dimensions: 409 x 334 x 40 mm
  5. More specifications
Display Type
€ 422,29 incl.
Order by 16:00 for Delivery on Tuesday
  • Description
  • Specifications
  • Connectivity
  • Downloads

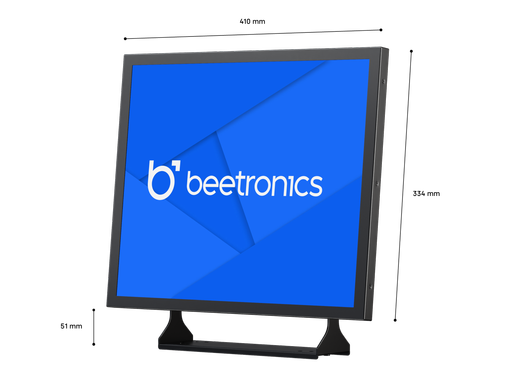

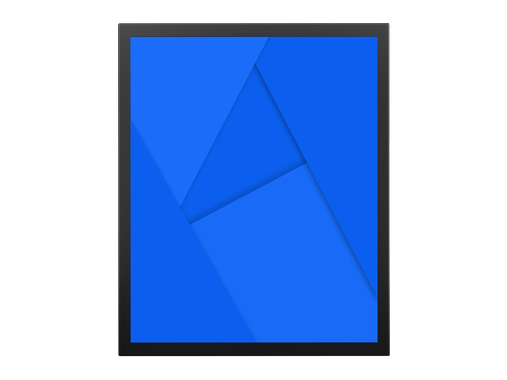

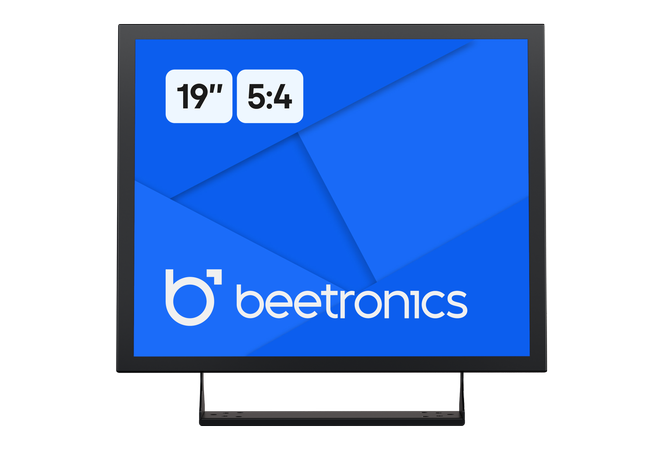

This 19 inch monitor has a matte IPS panel with a  5:4 aspect ratio. The monitor delivers a crisp image quality with excellent 178° viewing angles. The 19 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting.

5:4 Aspect Ratio

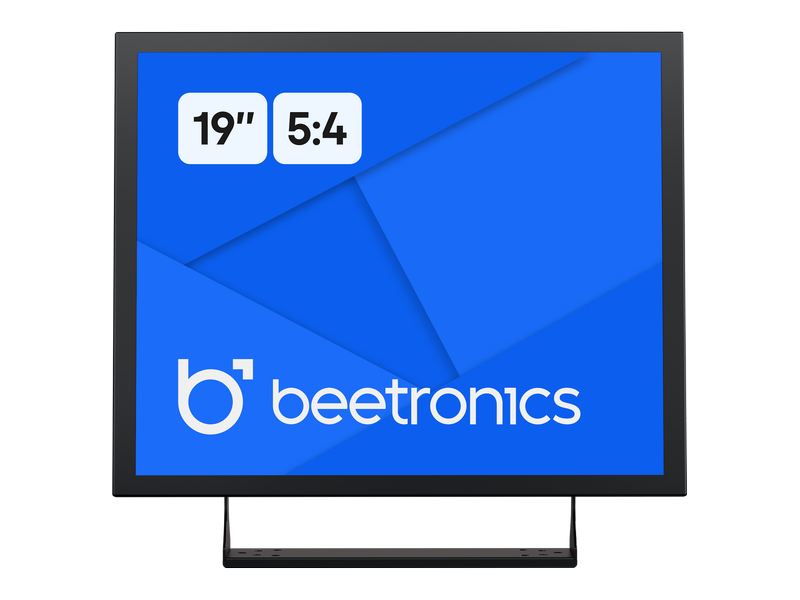

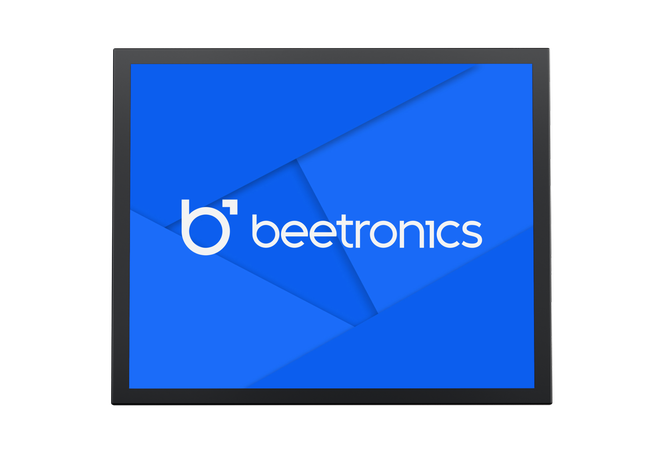

This 19 inch monitor is equipped with a 5:4 aspect ratio IPS panel. The monitor delivers a crisp image with excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, color and brightness are all very easy to adjust. The monitor is designed to display 5:4 ratio resolutions and is able to scale any resolution up to 1080p.

19 Inch Monitor Metal (5:4)

Versatile Connectivity

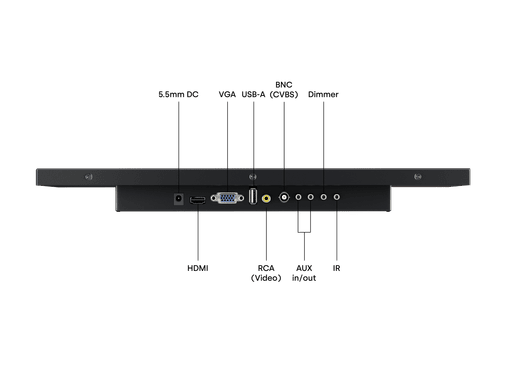

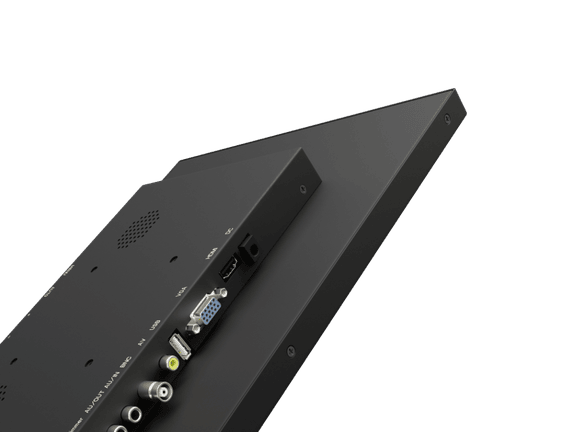

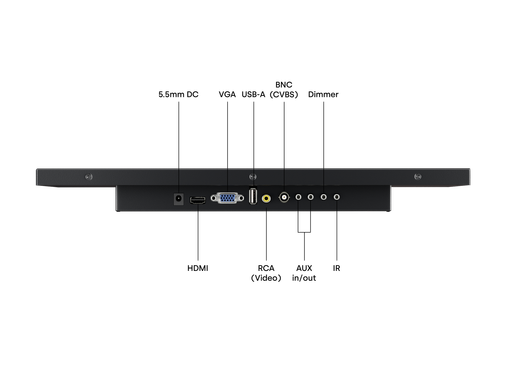

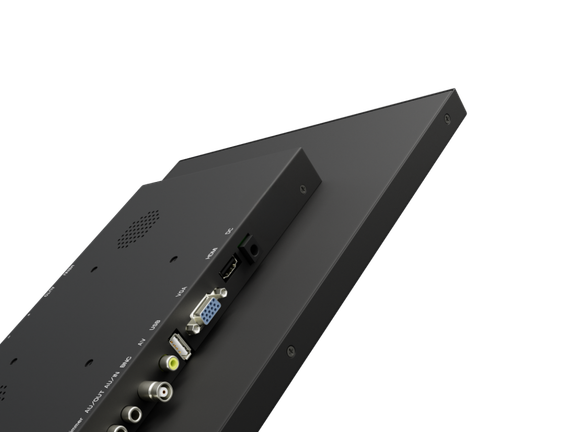

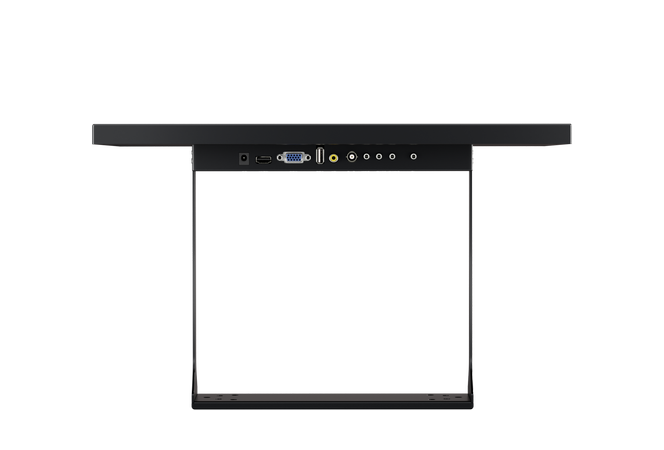

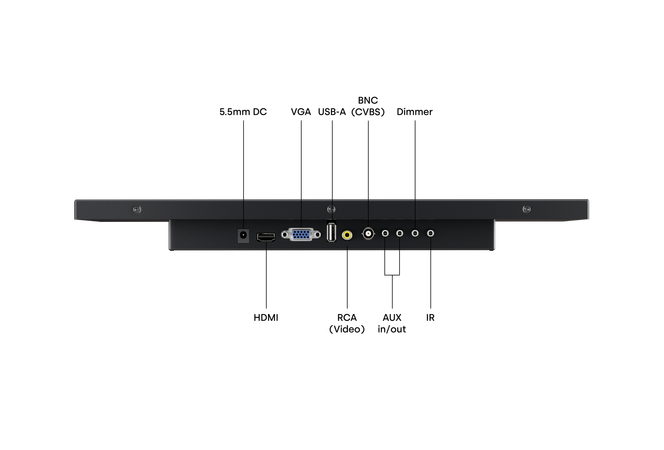

The 19VG7M monitor has a HDMI, VGA, BNC and RCA connection. The connections are located on the back of the monitor and are facing downwards, making installation easy in any situation. You can setup the monitor to automatically switch on when it detects a current or video signal.

19 Inch Monitor Metal (5:4)

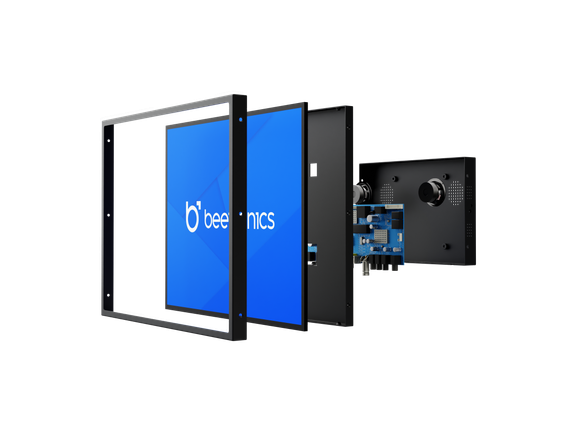

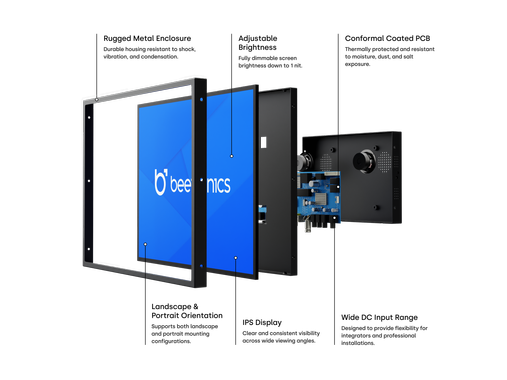

Designed for Professional Use

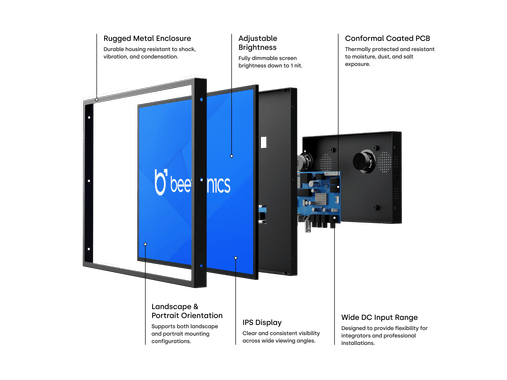

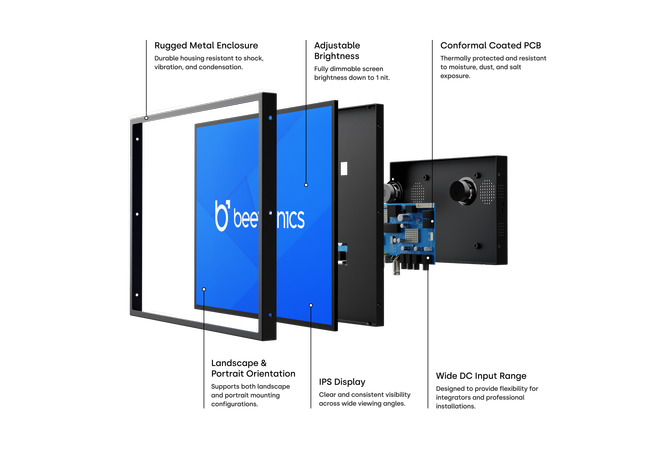

The 19VG7M is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9-33 Volts and features a fully dimmable backlight.

19 Inch Monitor Metal (5:4)

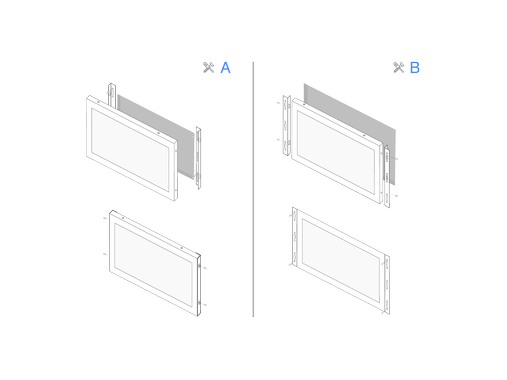

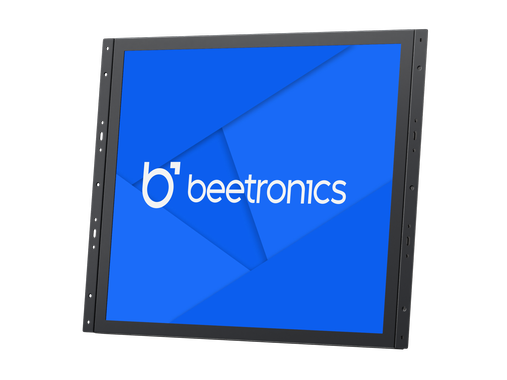

Easily Integrated

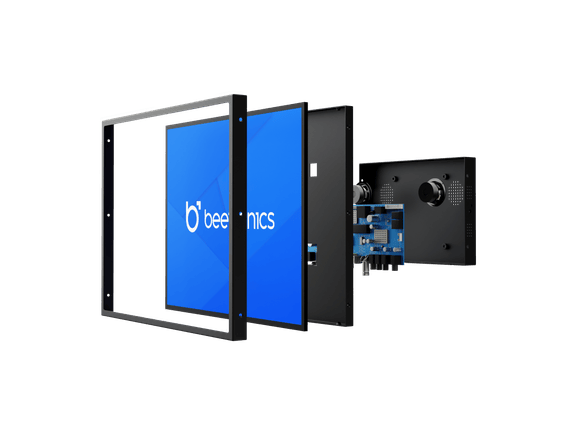

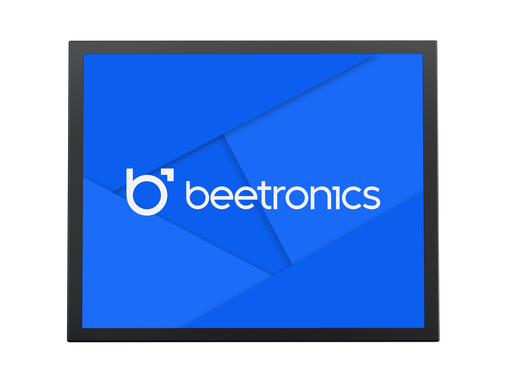

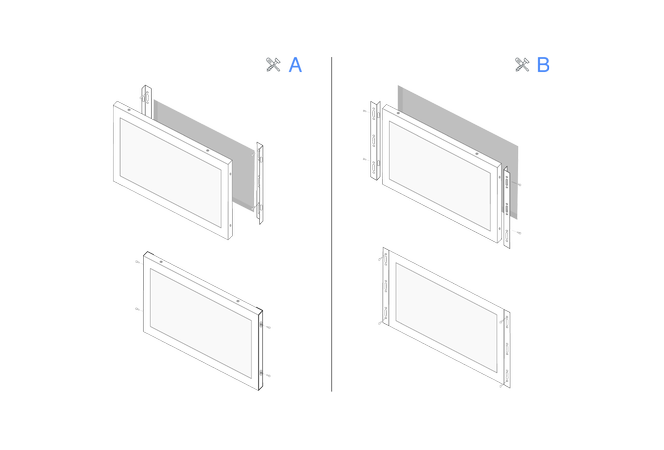

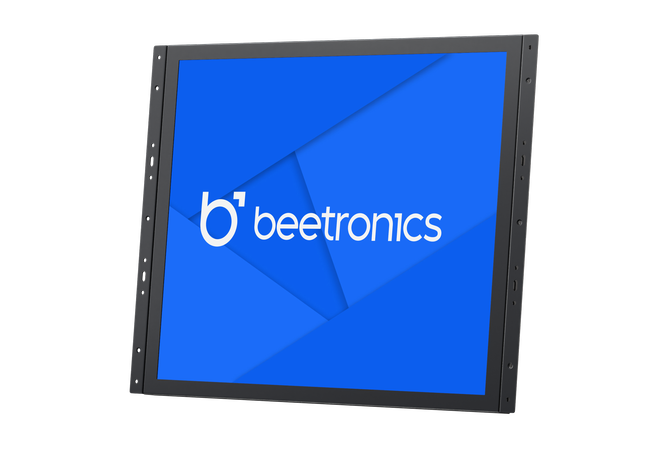

Thanks to numerous mounting options the 19 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.

19 Inch Monitor Metal (5:4)

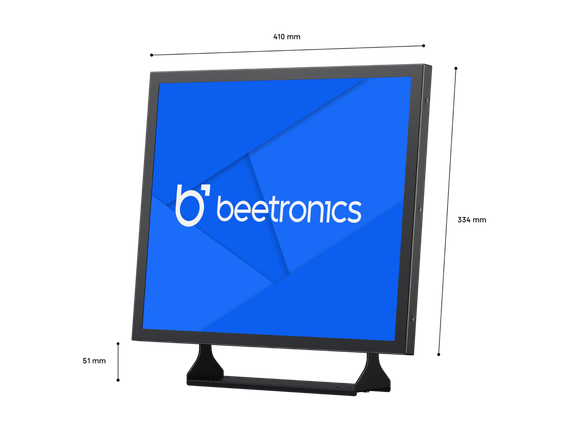

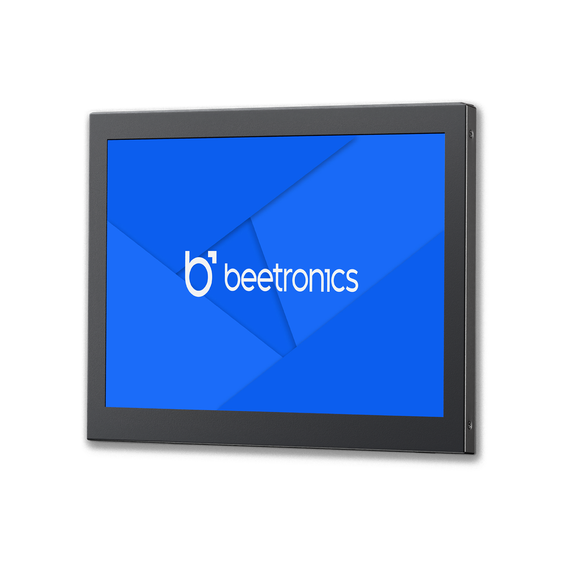

Desktop or Wall Mounting

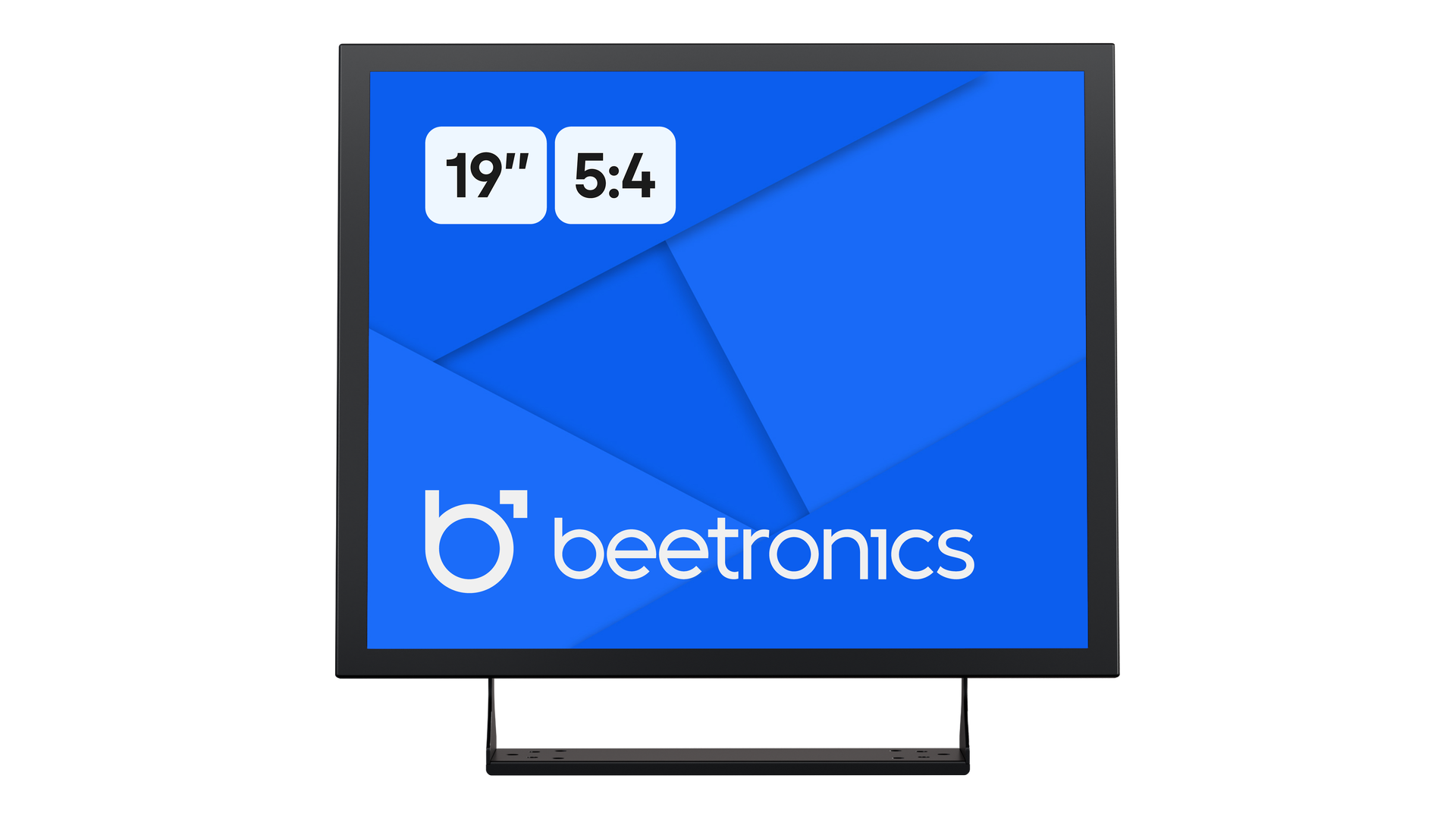

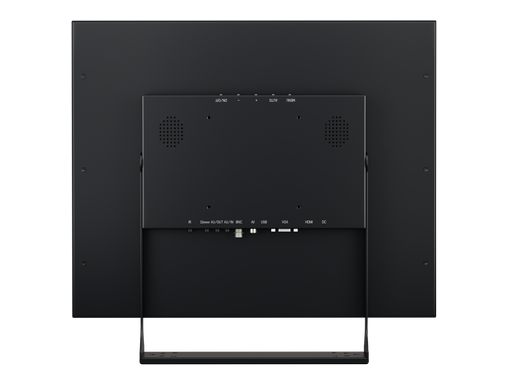

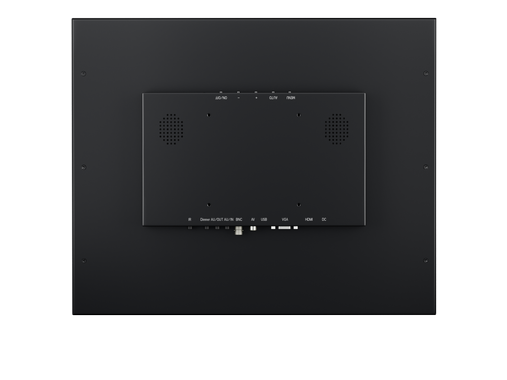

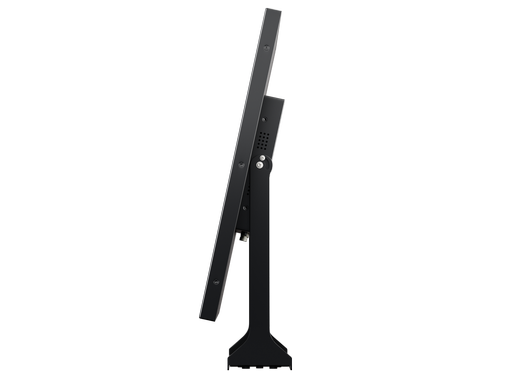

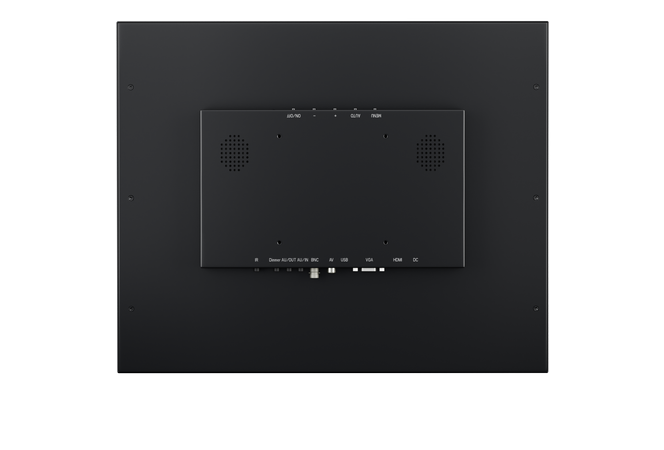

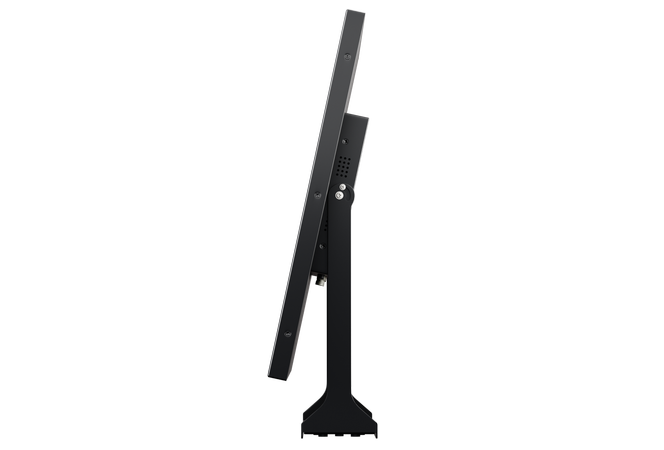

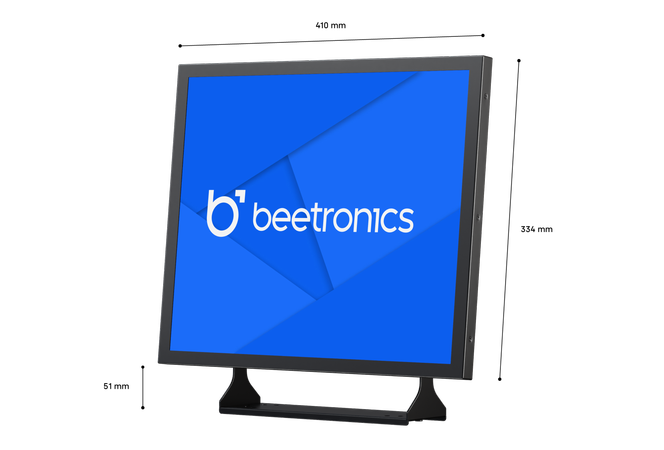

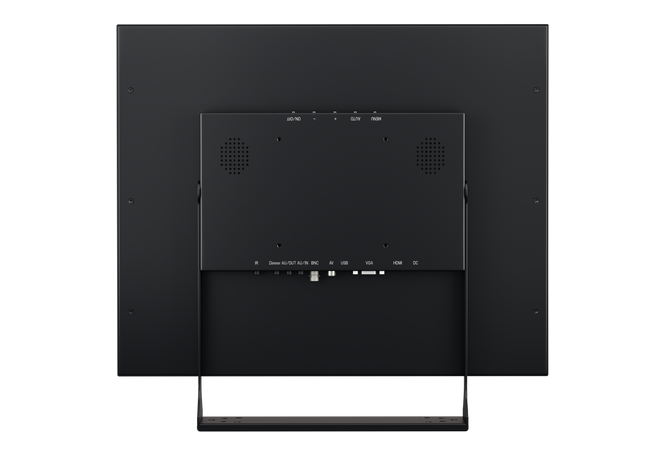

The Beetronics 19VG7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 100mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket.

19 Inch Monitor Metal (5:4)
General
Manufacturer
Beetronics
Item Number
19VG7M
Product Name
19 Inch Monitor Metal (5:4)
Warranty
2 Years
Datasheet
User Manual
Quickstart
Panel
Diagonal Size
19.1 Inches (486 mm)
Panel Type
IPS-LCD
Response Time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
470 cd/m2
Contrast
1500:1
Colour Encoding System
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Connectivity
HDMI
1x
VGA
1x
RCA Video
1x
1x Integrated USB Media Player
AUX Input (3.5mm)
1x
AUX Output (3.5 mm)
1x
Size & Weight
Colour
Black
Dimensions (Without Stand)
409 x 334 x 40 mm
Image Size
380 x 304 mm
Weight
3500 Grams (4300 Grams With Stand)
Technical Drawing
3D Drawing
Features & Functions
Audio
Integrated Speakers
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable Backlight Brightness
Mirroring
Image can be mirrored, horizontally and vertically
Orientation

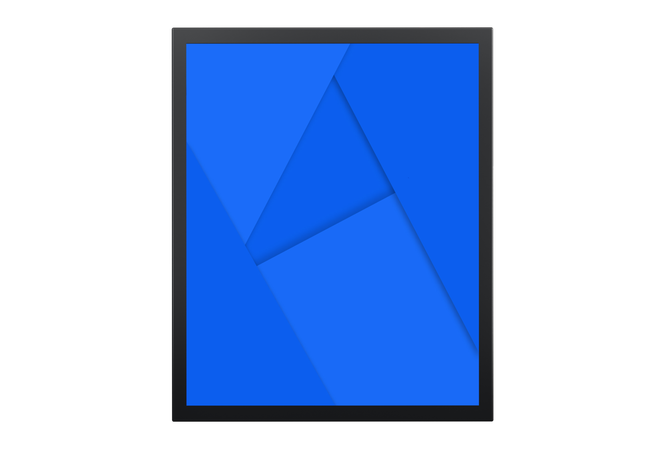

Landscape, Portrait, Face-up
The monitor is equipped with a built-in USB media player.
Power
Input Voltage
DC 9-33V
Consumption
Typical 22.4 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 12V-3A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-20°C to +60°C
Storage Temperature
-20°C to +70°C
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 100x100mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC
Package Content
Includes

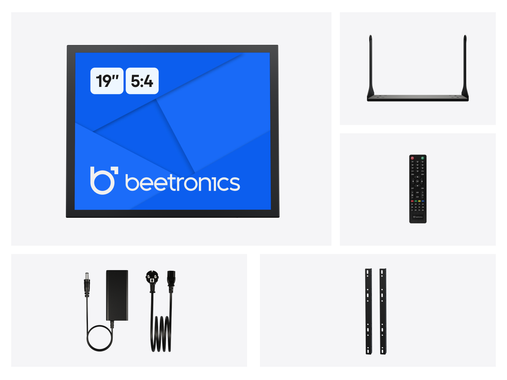

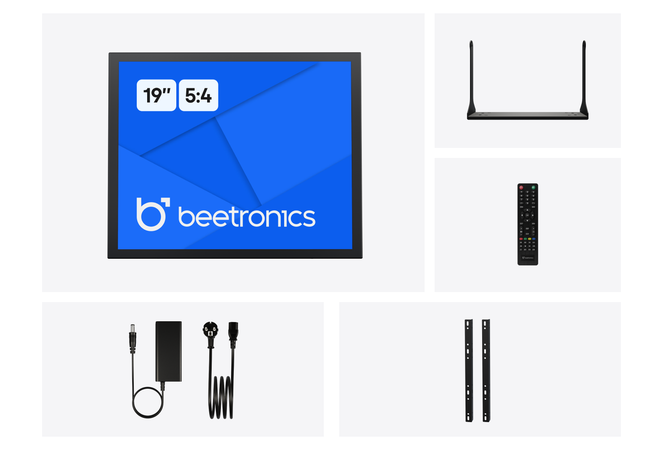

Monitor, Stand, Remote Control, Mounting Strips, AC Power Adapter, Manual
Compatible Accessories
Infrared Extension
Compatible With Infrared Extender (IRC7)
Dimmer
Compatible With External Dimmer (DMK7/DMK8)
Rack Mounting
Compatible With 19 Inch Rack Mount Kit (RMK2)
Wall Mounting
Compatible With Flat Wall Mount Bracket (VWB1)
Stand
Compatible With VDK7 Metal Stand
19 Inch Monitor Metal (5:4)
Downloads
User Manual
Quickstart
Technical Drawing
3D Drawing
Datasheet
