General
Manufacturer
Beetronics
Item Number
10TS7
Product Name

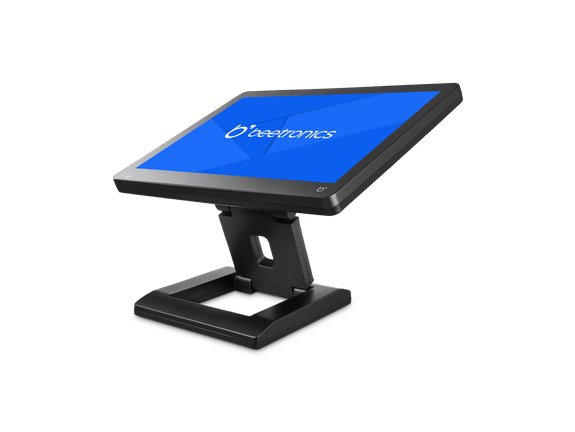

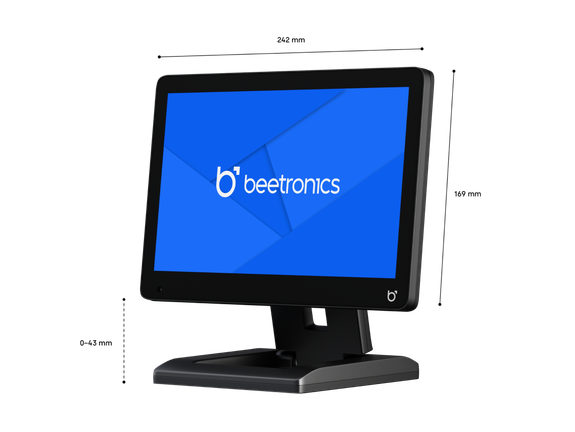

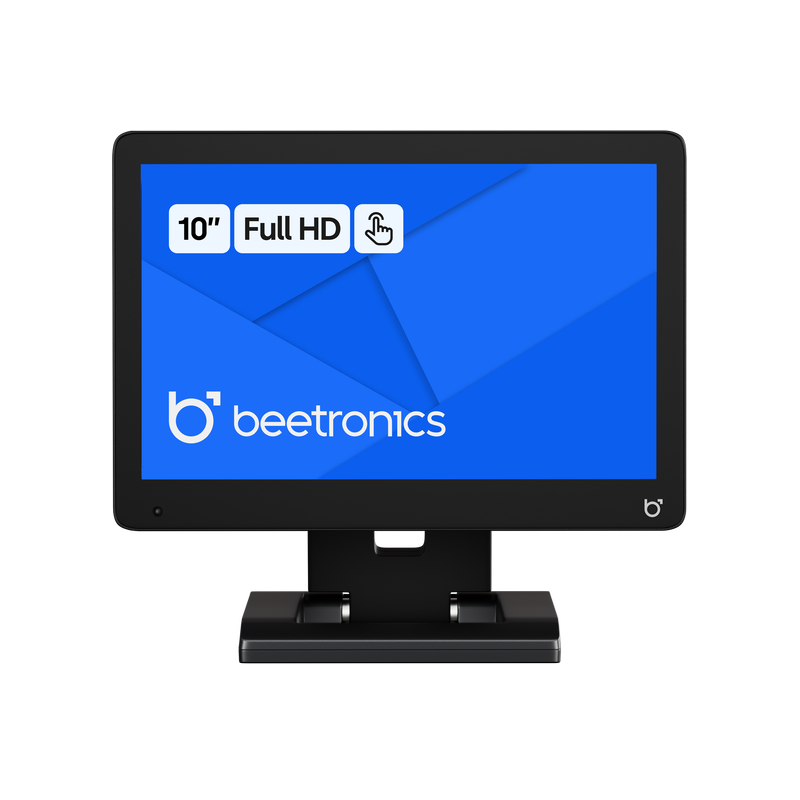

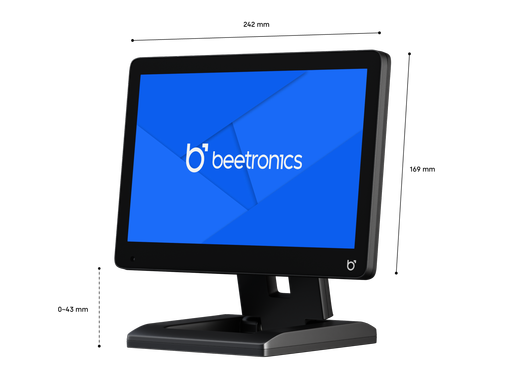

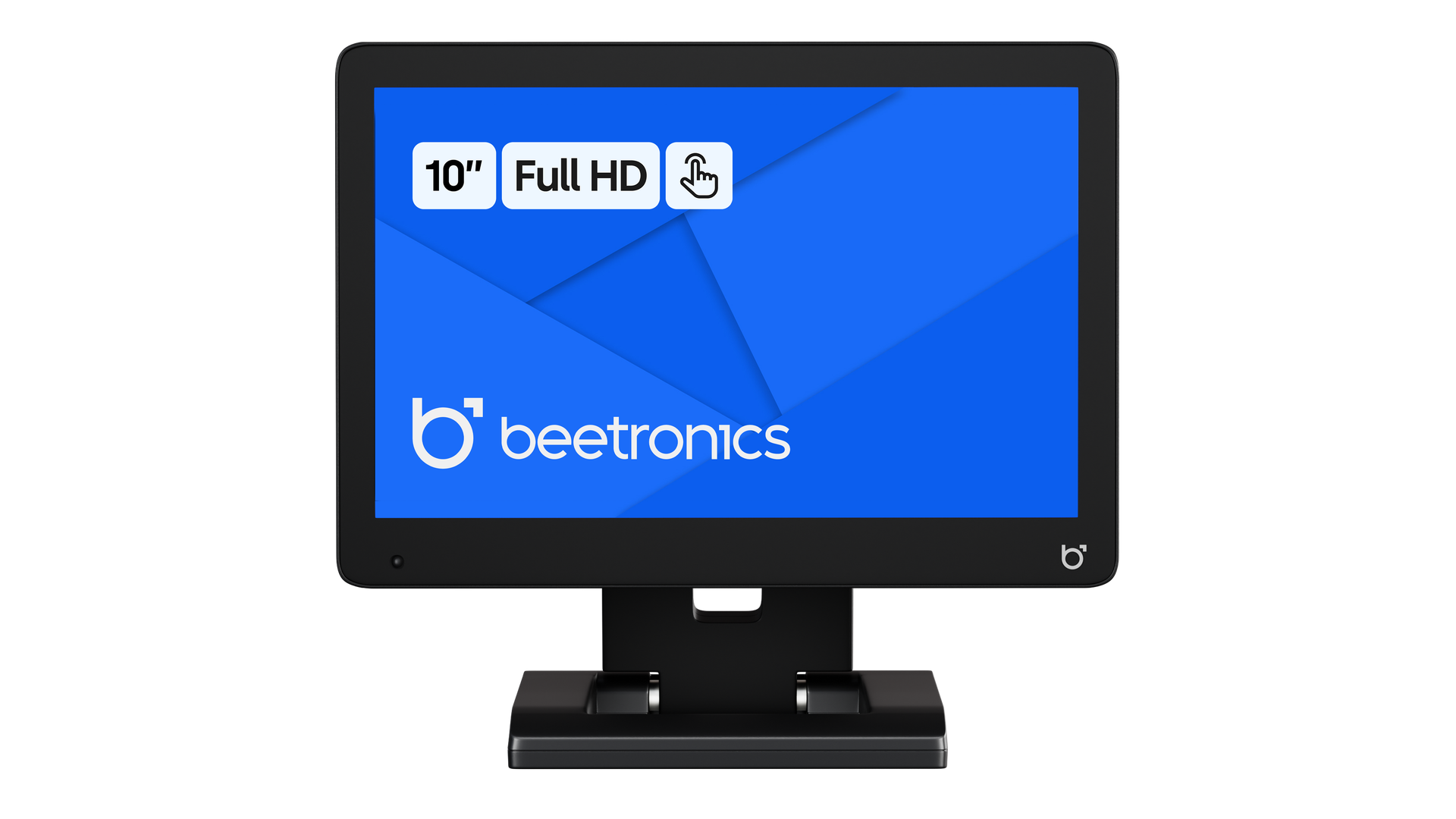

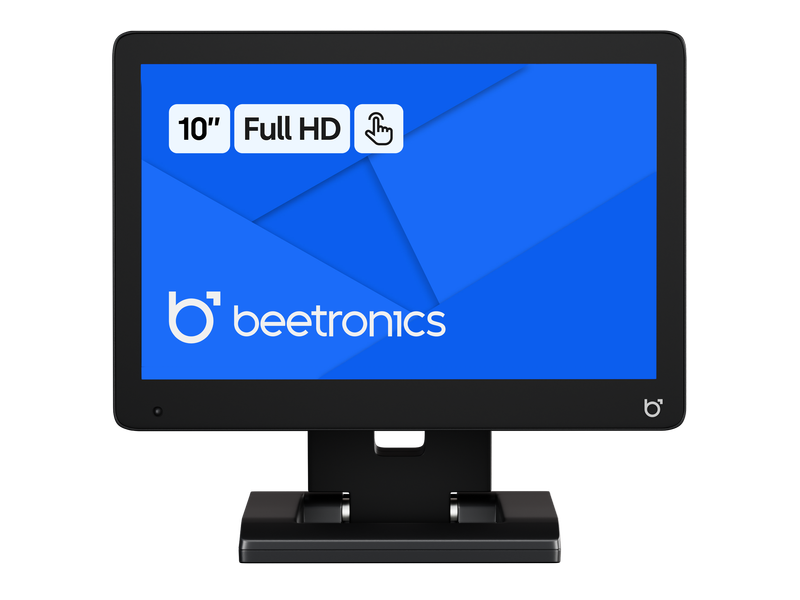

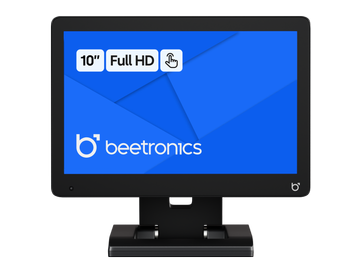

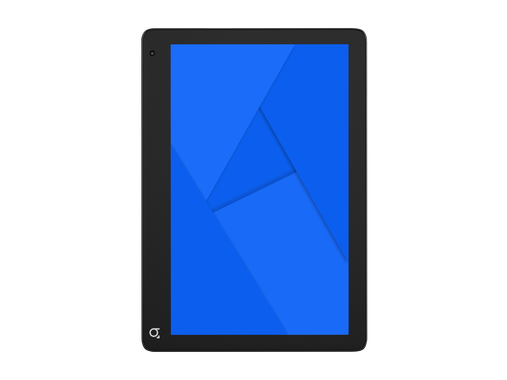

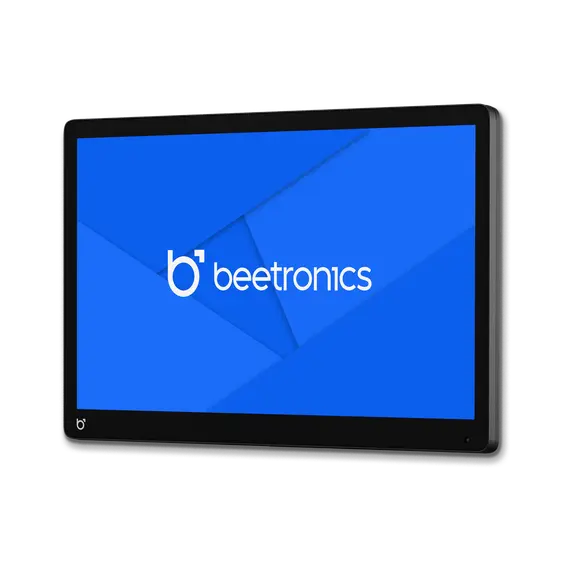

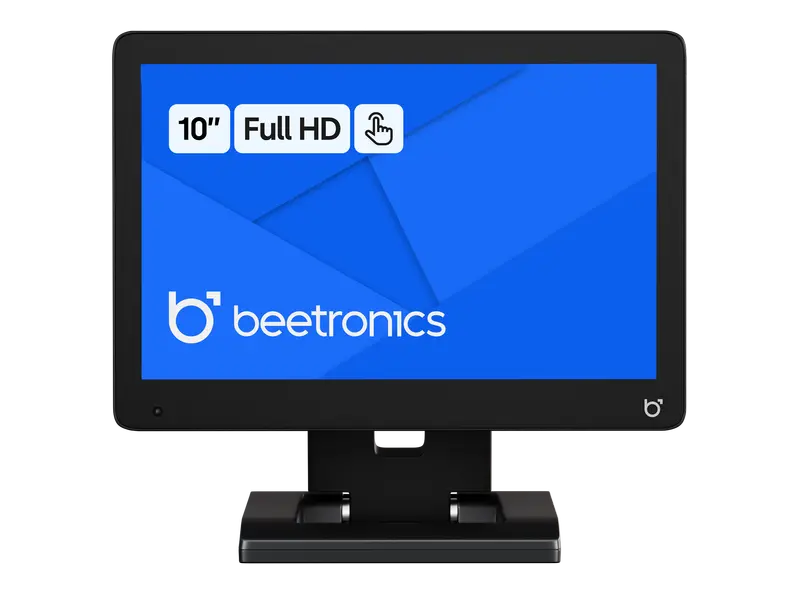

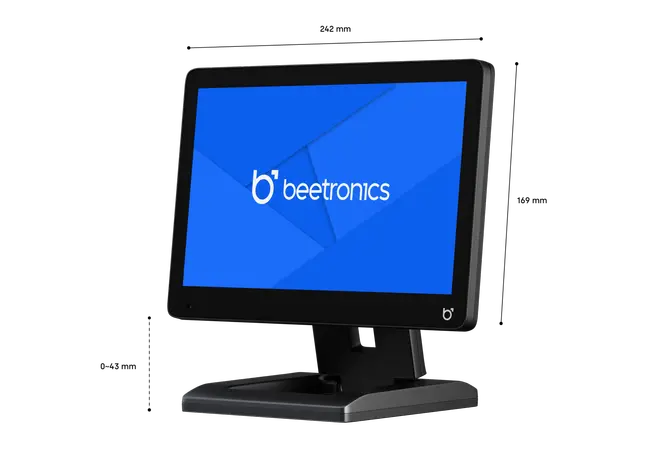

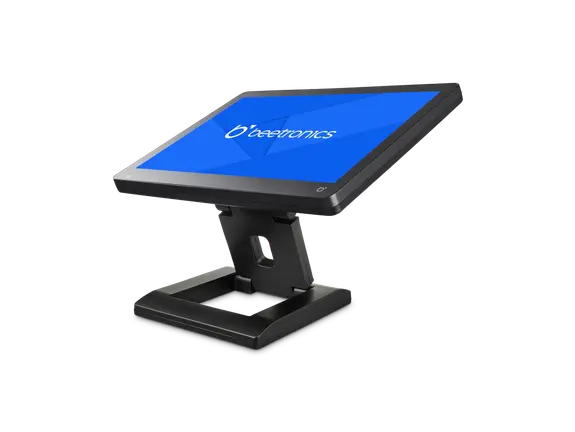

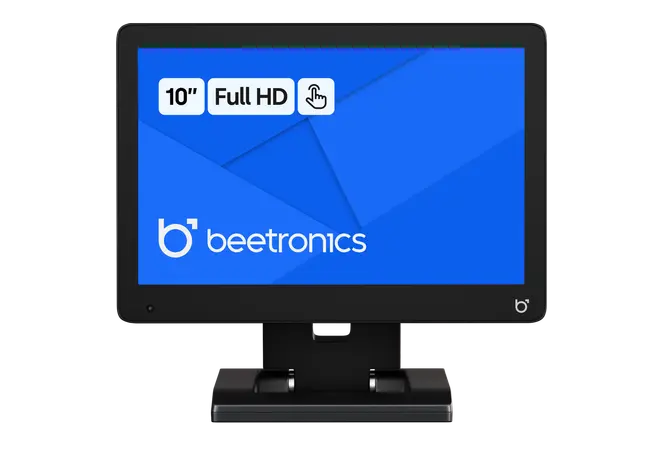

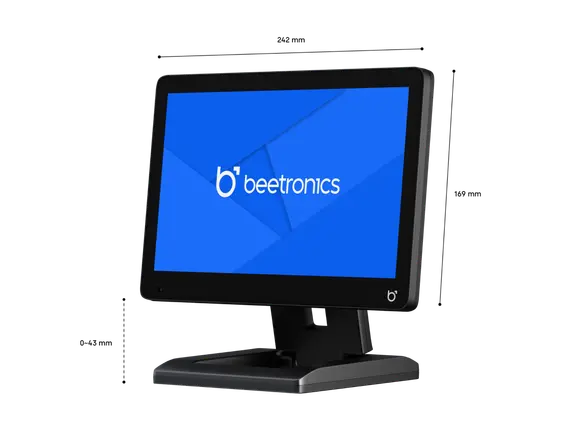

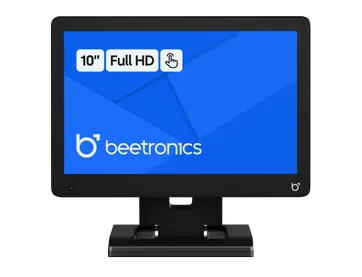

10 Inch Touchscreen
Warranty
2 Years
Datasheet
Drivers
User Manual
Quickstart
Supported Operating Systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux Distributions
ChromeOS
All ChromeOS Versions
Brightsign
All BrightsignOS Versions
Panel
Diagonal Size
10.1 Inches (258 mm)
Panel Type
IPS-LCD
16:10 (16:9, 4:3 Adjustable)
Response Time
10 ms
MTBF
50K
1280 x 800
1920 x 1200 (max), 640 x 480 (min)
224 PPI
Backlight
LED
Brightness
300 cd/m2
Contrast
1500:1
Colour Encoding System
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Surface
Tempered glas
Capacitive, 10-Point Multi-Touch (PCAP)
Touch control
Stylus, Hand, Glove

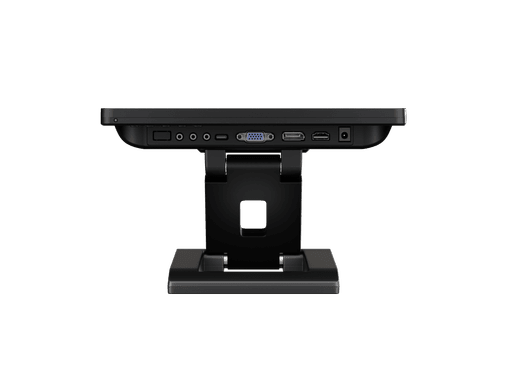

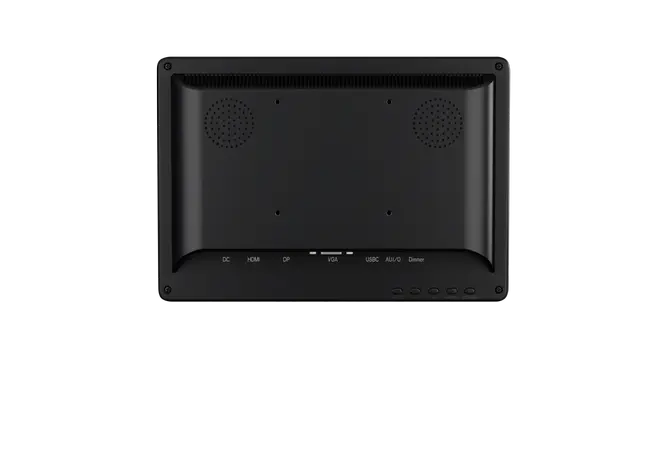

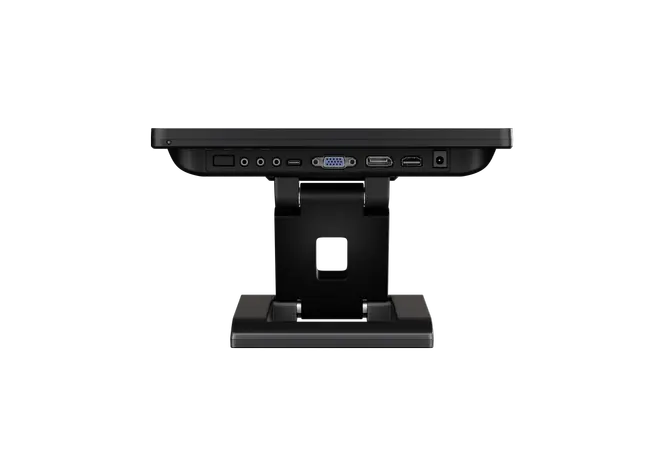

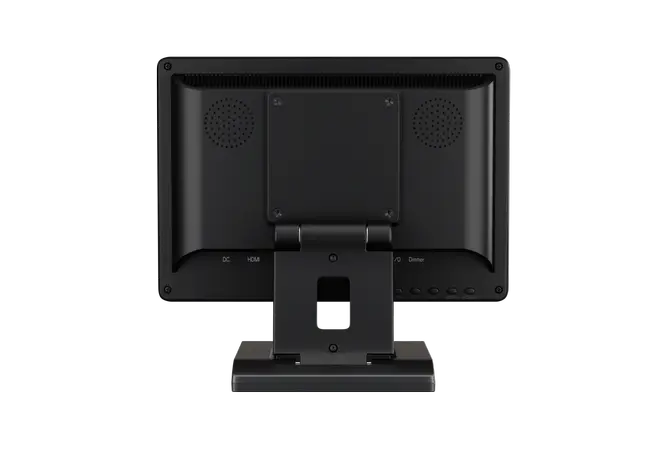

Connectivity
HDMI
1x
VGA
1x
1x
RCA Video
1x
Only for Touchscreen Functionality
AUX Input (3.5mm)
1x
AUX Output (3.5 mm)
1x
Size & Weight
Colour
Black

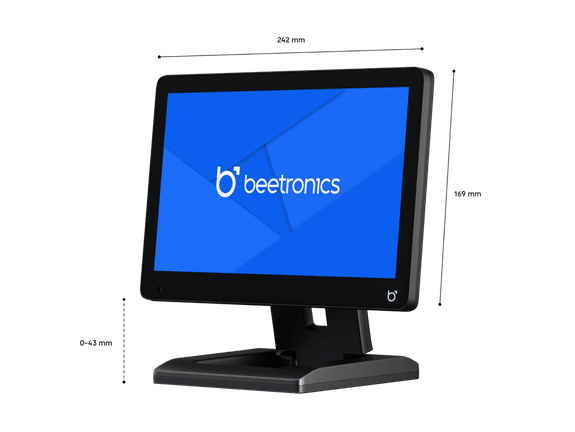

Dimensions (Without Stand)
242 x 169 x 34 mm
Active Area
218 x 137 mm
Weight
700 Grams (1100 Grams With Stand)
Technical Drawing
3D Drawing
Features & Functions
Audio
Integrated Speakers
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable Backlight Brightness
Mirroring
Image can be mirrored, horizontally and vertically

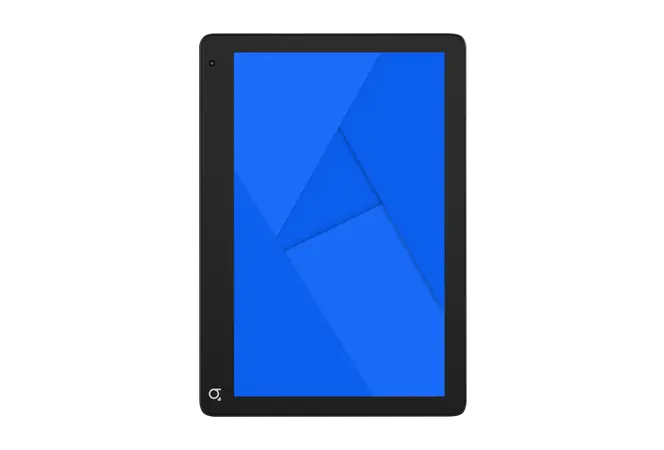

Orientation
Landscape, Portrait, Face-up
Power
Input Voltage
DC 9-33V
Consumption
Typical 8.6 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 12V-2A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-20°C to +60°C
Storage Temperature
-20°C to +70°C
Operating Humidity
20% - 85% Non-Condensing
Mounting
Flush Mount
Possible, no accessories available

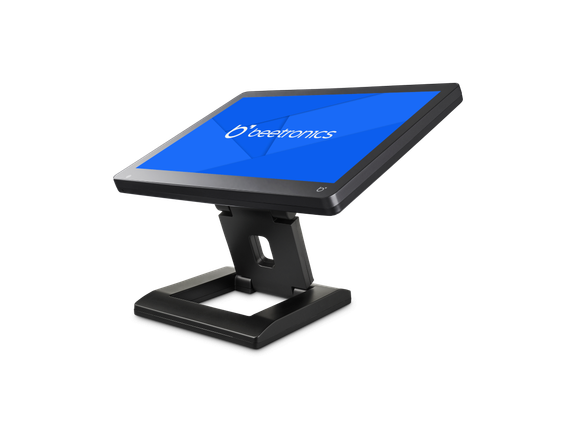

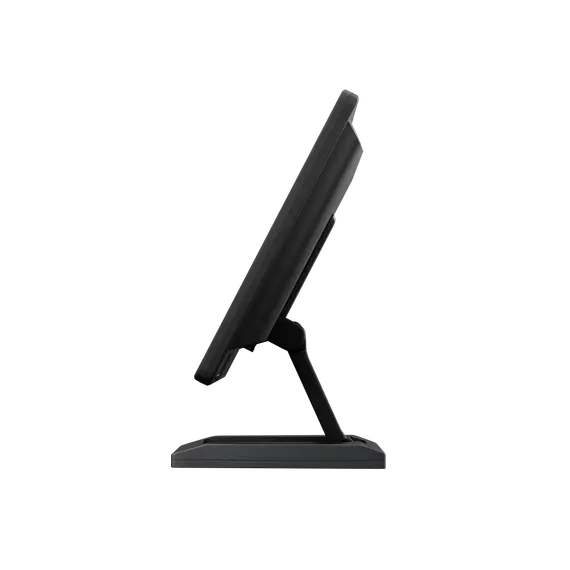

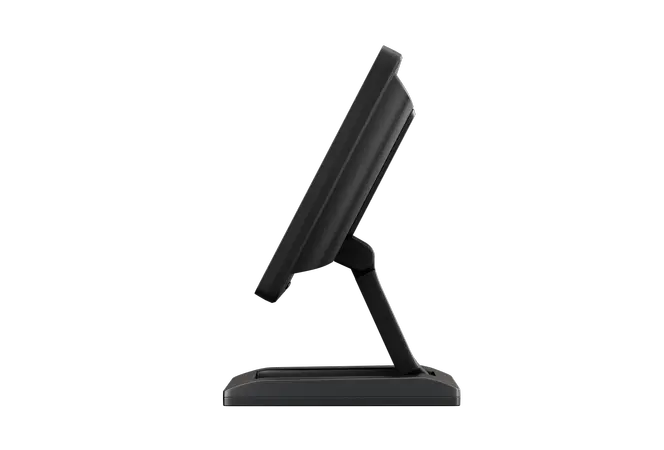

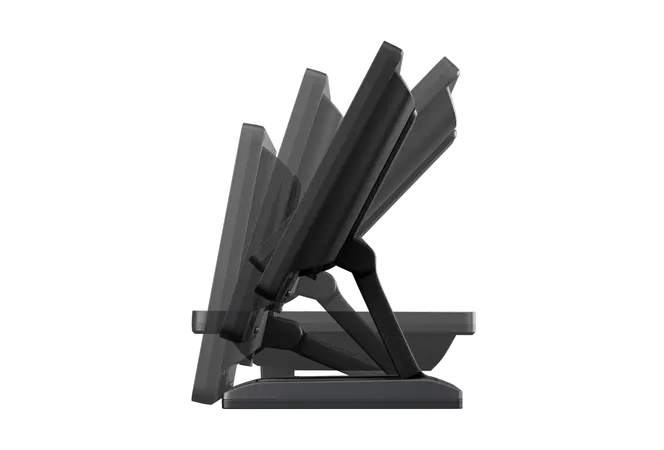

Stand

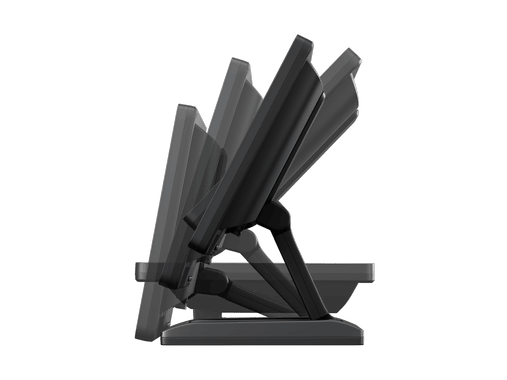

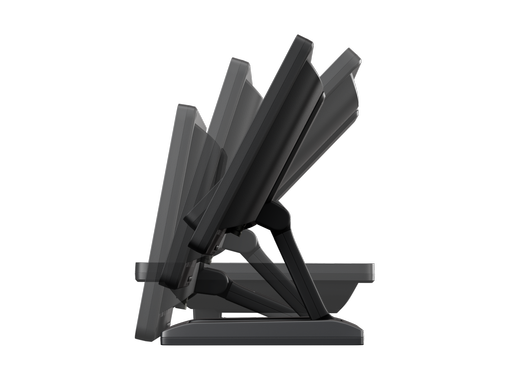

Adjustable and Detachable
Certifications & Standards
IP65 Front Panel
Impact Protection
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

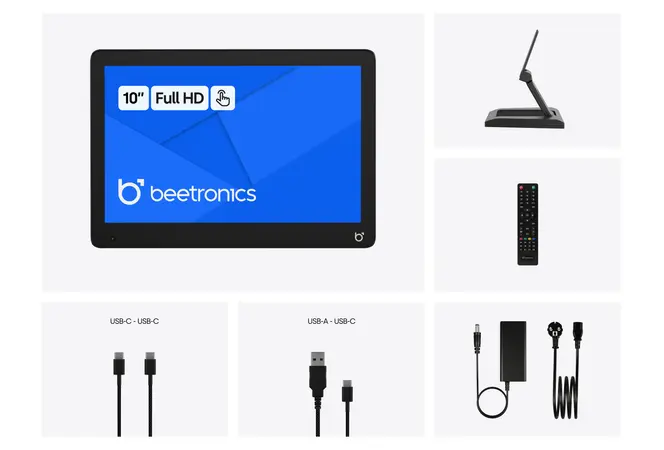

Package Content
Includes

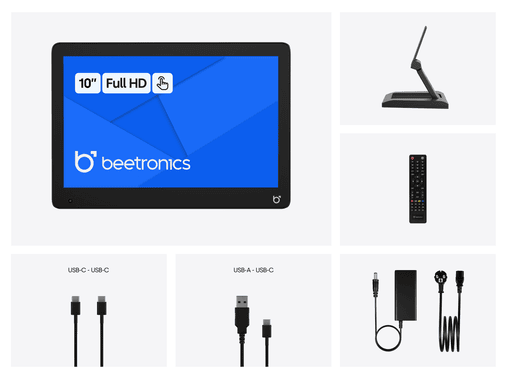

Touchscreen, AC Power Adapter, Remote Control, USB Cable, Stand, Manual
Compatible Accessories
Infrared Extension
Rack Mounting
Wall Mounting
Stand
VDK3 Included as Standard
Touch Pen
